Power Supply

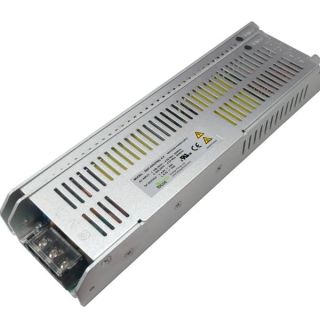

UP Series PS400UP60L-4.2
• AC input: 90~264Vac
• Built-in Active PFC, PF>0.93
• Output protections: OLP/SCP/OTP/OPP
• No fan suitable for quiet environment100% full load burn in test
• Long life and high reliability
• Low profile, 30mm
• Built-in Active PFC, PF>0.93
• Output protections: OLP/SCP/OTP/OPP
• No fan suitable for quiet environment100% full load burn in test
• Long life and high reliability
• Low profile, 30mm
Certification
OUR FEATURE
Empowering a Brighter, Sustainable Tomorrow through Innovative Energy Solutions.
01
100% full load burn-in test
02
High efficiency up to 90%Conformal coating
03
High Efficiency, and High Reliability
04
3 years warranty
PRODUCT INFORMATION
Specification
Part No
EFO-PS400UP60L-4.2
Dimensions (W X H X D)
235.00 x 60.00 x 30.00 mm
Weight
660g
Case Material
Metal (AL5052, SGCC)
Cooling Method
Free air convection (Fixed to aluminum heatshink of customer’s system)
Wide Operating Ambient Temperature
-40°C to +85°C
Certification
UL/CE
