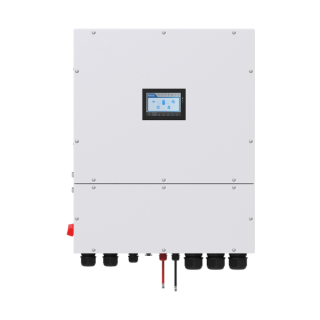

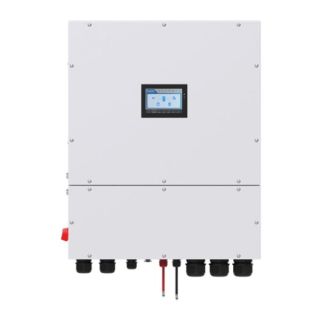

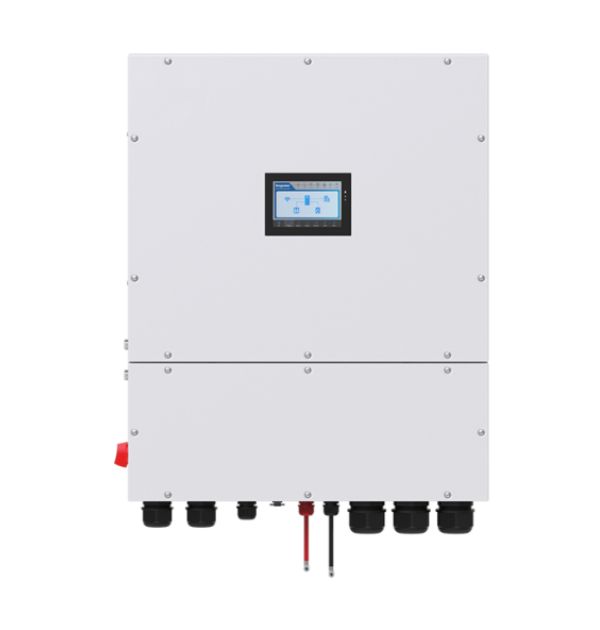

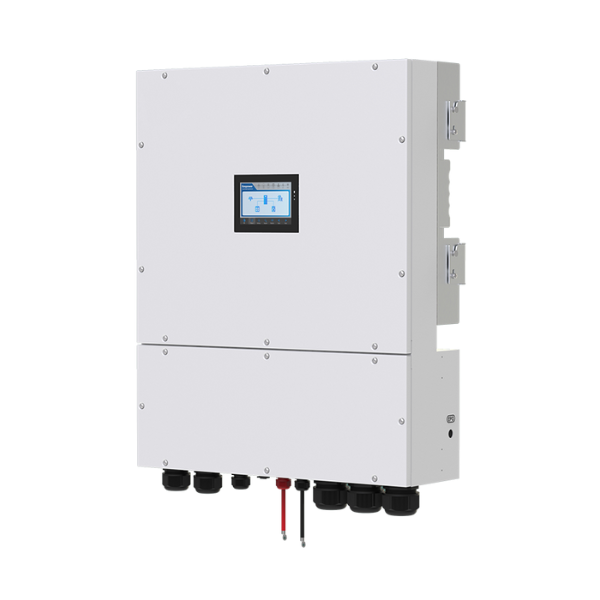

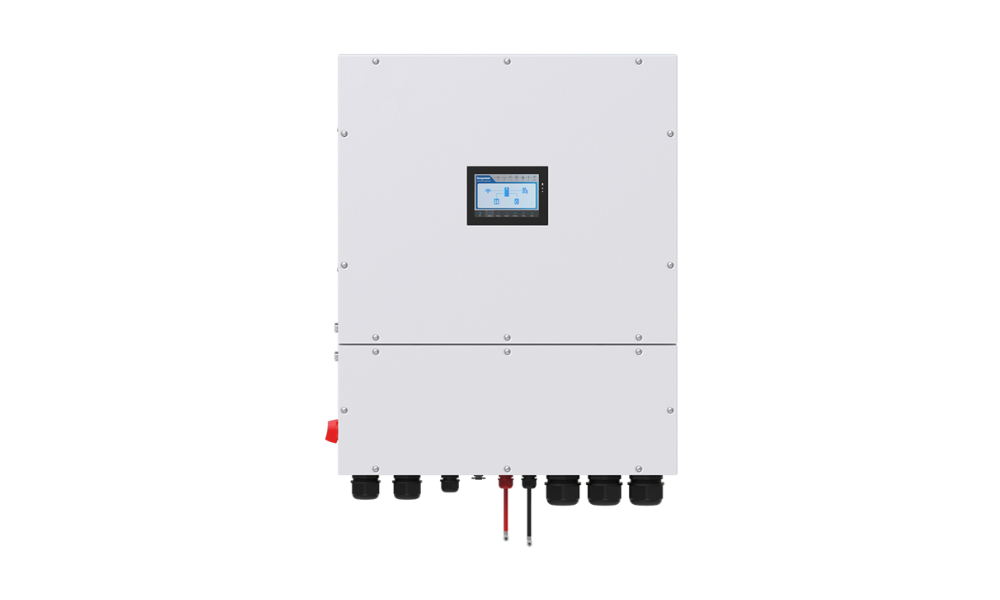

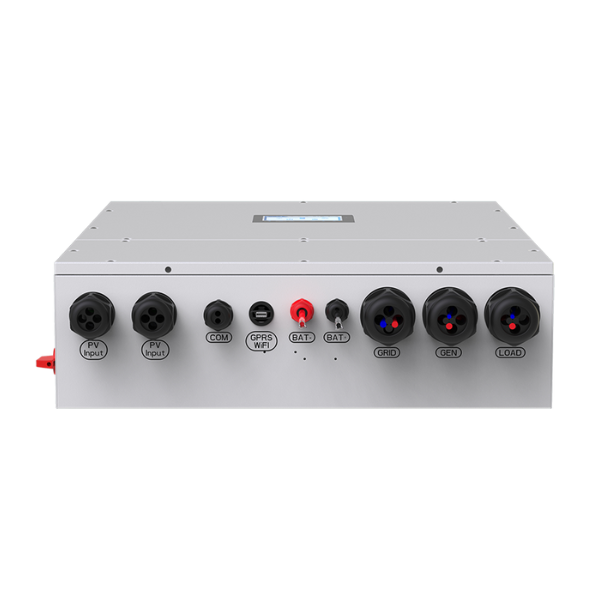

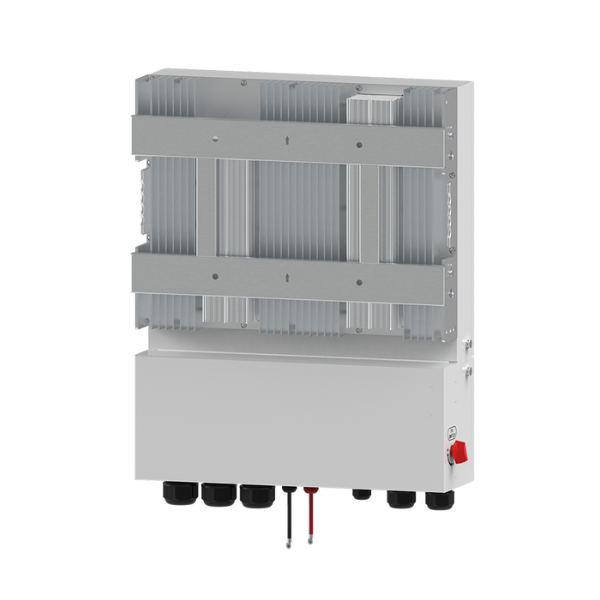

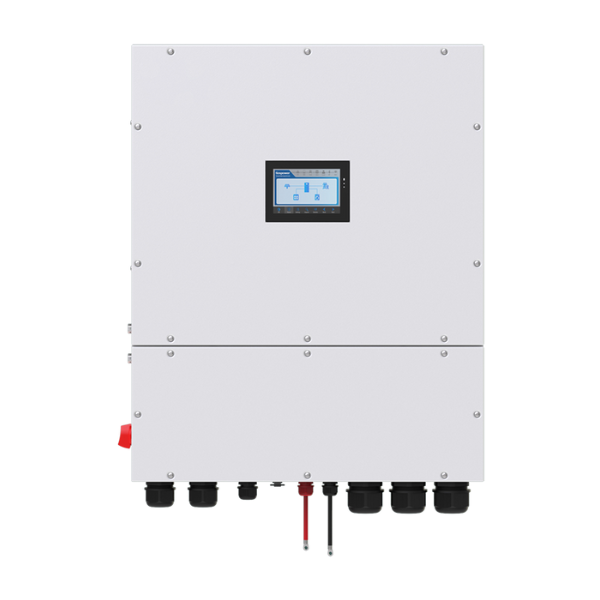

EFOI EX 15KH2
‧Support MPPT 1.5 times overload
‧Mobile APP cloud monitoring
‧Easy to install and maintain
‧Grid voltage adaptation (EU)
‧The maximum efficiency can reach 98%
| GPEX- | 10KH2 | 12KH2 | 15KH2 |
| Battery adaptation | 75V-480V lithium battery/lead-acid battery | 75V-480V lithium battery/lead-acid battery | 75V-480V lithium battery/lead-acid battery |
| Battery capacity | 50-100Ah | 50-100Ah | 50-100Ah |
| Charge and discharge current | 75A | 75A | 75A |
| Number of MPPT channels/number of strings | 4/1 | 4/2 | 4/2 |
| Single channel MPPT power | 3.6kW | 4.6kW | 6kW |
| Voltage range | 120-550V (rated MPPT voltage 384V) | 120-550V (rated MPPT voltage 384V) | 120-550V (rated MPPT voltage 384V) |
| Max/Min circuit | 15.5/20A | 27/40A | 27/40A |
| Rated grid voltage | L1\L2\N\PE 120/240Vac 60Hz | L1\L2\N\PE 120/240Vac 60Hz | L1\L2\N\PE 120/240Vac 60Hz |
| Adapting grid parameters | 96-144Vac / 192-288Vac | 96-144Vac / 192-288Vac | 96-144Vac / 192-288Vac |
| Rated off-grid voltage | L1\L2\N\PE 120/240Vac 60Hz | L1\L2\N\PE 120/240Vac 60Hz | L1\L2\N\PE 120/240Vac 60Hz |
| Rated grid-connected power | 10kW | 12kW | 15kW |
| Emergency mode power | 10kW | 12kW | 15kW |
| Installation dimensions | 650*800*190(mm) | 650*800*190(mm) | 650*800*190(mm) |
| Protection characteristics | Solar reverse connection protection/ground fault monitoring/overcurrent protection/overvoltage protection/battery | Solar reverse connection protection/ground fault monitoring/overcurrent protection/overvoltage protection/battery | Solar reverse connection protection/ground fault monitoring/overcurrent protection/overvoltage protection/battery |
| Communication and control | Rs485, Wifi/ Ethernet/ GPRS/4G, SD, CAN2.0 | Rs485, Wifi/ Ethernet/ GPRS/4G, SD, CAN2.0 | Rs485, Wifi/ Ethernet/ GPRS/4G, SD, CAN2.0 |
