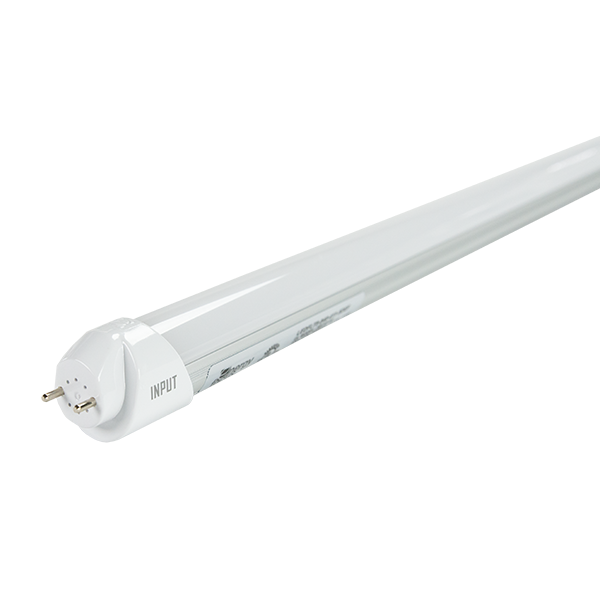

Commercial Double-Ended Ballast Bypass LED Tube
The Energy Focus Commercial Double-Ended Ballast Bypass LED tube (DEBB) features a direct-wire installation mode and allows existing tombstones (shunted or unshunted) to be utilized, providing customers with significant savings by reducing the average retrofit installation time. The Commercial DEBB does not depend on any ballast to function normally, minimizing points of failure and requiring less maintenance. The Commercial DEBB reaffirms Energy Focus’ commitment to producing products that are high quality, long-lasting and sustainable.
Certification
OUR FEATURE
Empowering a Brighter, Sustainable Tomorrow through Innovative Energy Solutions.
01
Efficacy of 150 lm/W
02
Double-Ended Design
03
Buy American Act Compliant
04
10-Year Warranty
PRODUCT INFORMATION
Specification
Wattage
Available in 11W and 15W
Connection
Medium bi-pin (G13) end cap
Housing
Oval extruded aluminum / polycarbonate lens
Efficacy
150lm/W
Color Temperature
3500, 4000, 5000K
CRI
＞80
Lens
Polycarbonate lens
Input Voltage
100-277 VAC, 50/60 Hz
Driver
Double-ended design
Environmental Requirements
Operating temp: -20 to +50°C Storage temp: -30 to +60°C Working humidity: 30% to 85% Storage humidity: 10% to 90% Non-corrosive environments
Lumen Output
Between 1650-2250 lumens (wattage dependent)
Warranty
10-Year Warranty
