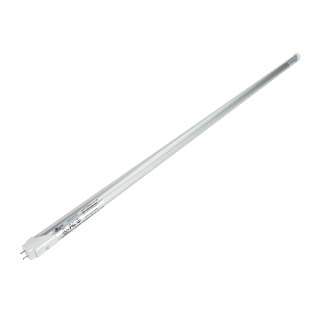

300D Series LED Tube
The Energy Focus 300D Series LED Tube utilizes a direct-wire installation mode. Direct-wire TLEDs require that any existing ballast be removed and the TLED be rewired to operate on AC line voltage. Simple re-wiring and replacement of non-shunted lamp holders are also required. By removing the ballast your TLED no longer depends on any additional hardware to function normally and also minimizes points of failure – less maintenance required. In addition, the 300D Series provides 130 lm/W efficacy.
Certification
OUR FEATURE
Empowering a Brighter, Sustainable Tomorrow through Innovative Energy Solutions.
01
Efficacy of 130 lm/W
02
Single Ended Design
03
10-Year Warranty
04
Buy American Act Compliant
PRODUCT INFORMATION
Specification
Wattage
Available in 8W, 13W, and 18W
Connection
Medium bi-pin (G13) end cap
Housing
Oval extruded aluminum / polycarbonate lens
Efficacy
130lm/W
Color Temperature
3500, 4000, 5000K
CRI
＞80
Lens
Polycarbonate lens
Input Voltage
100-277 VAC, 50/60 Hz
Driver
Single ended design
Environmental Requirements
Operating temp: -20 to +50°C Storage temp: -30 to +60°C Working humidity: 30% to 85% Storage humidity: 10% to 90% Non-corrosive environments
Lumen Output
Between 1040-2340 lumens (wattage dependent)
Warranty
10-Year Warranty
